🔷 Elevate your DIY game with the future of transparent OLED tech!

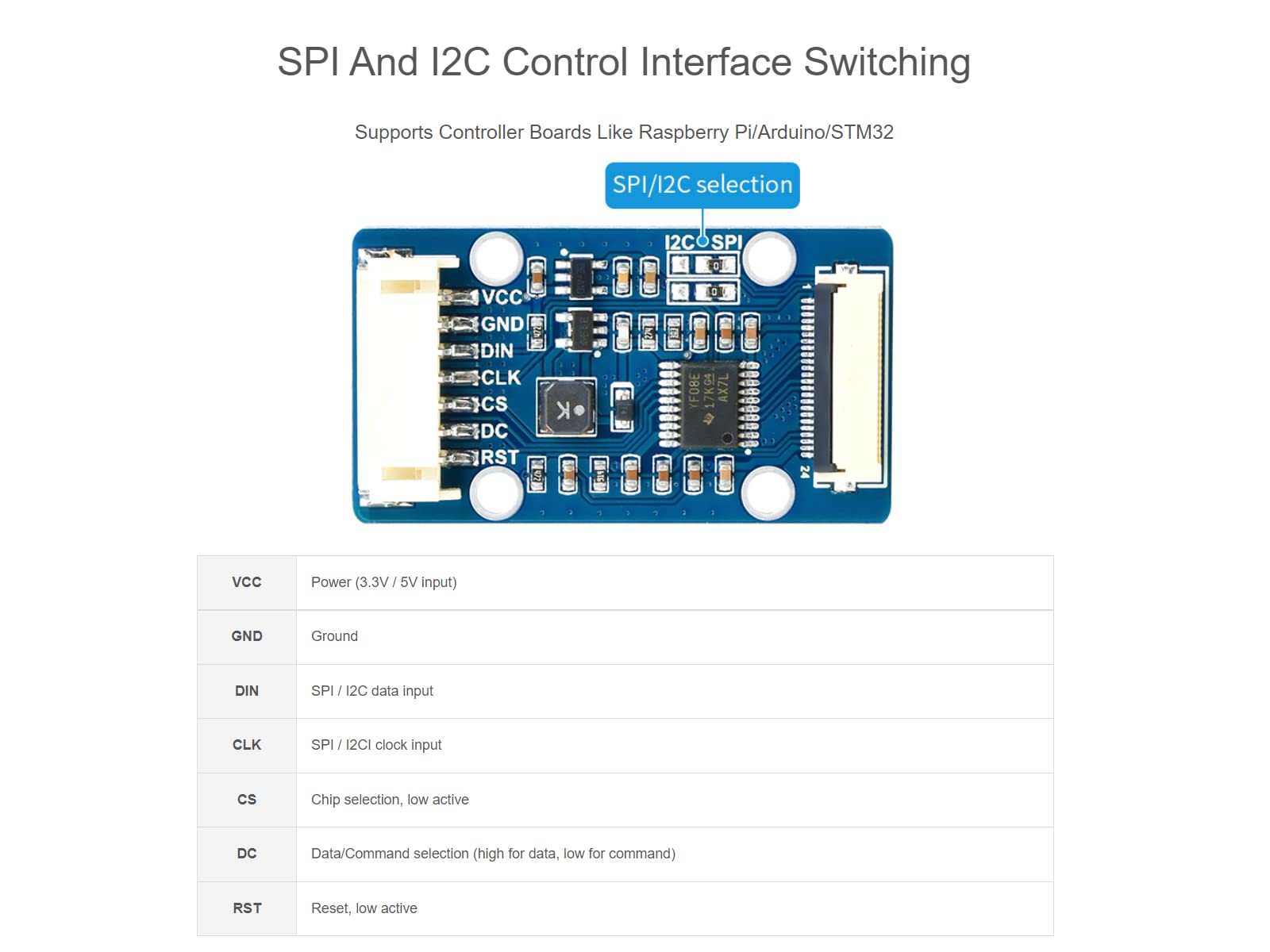

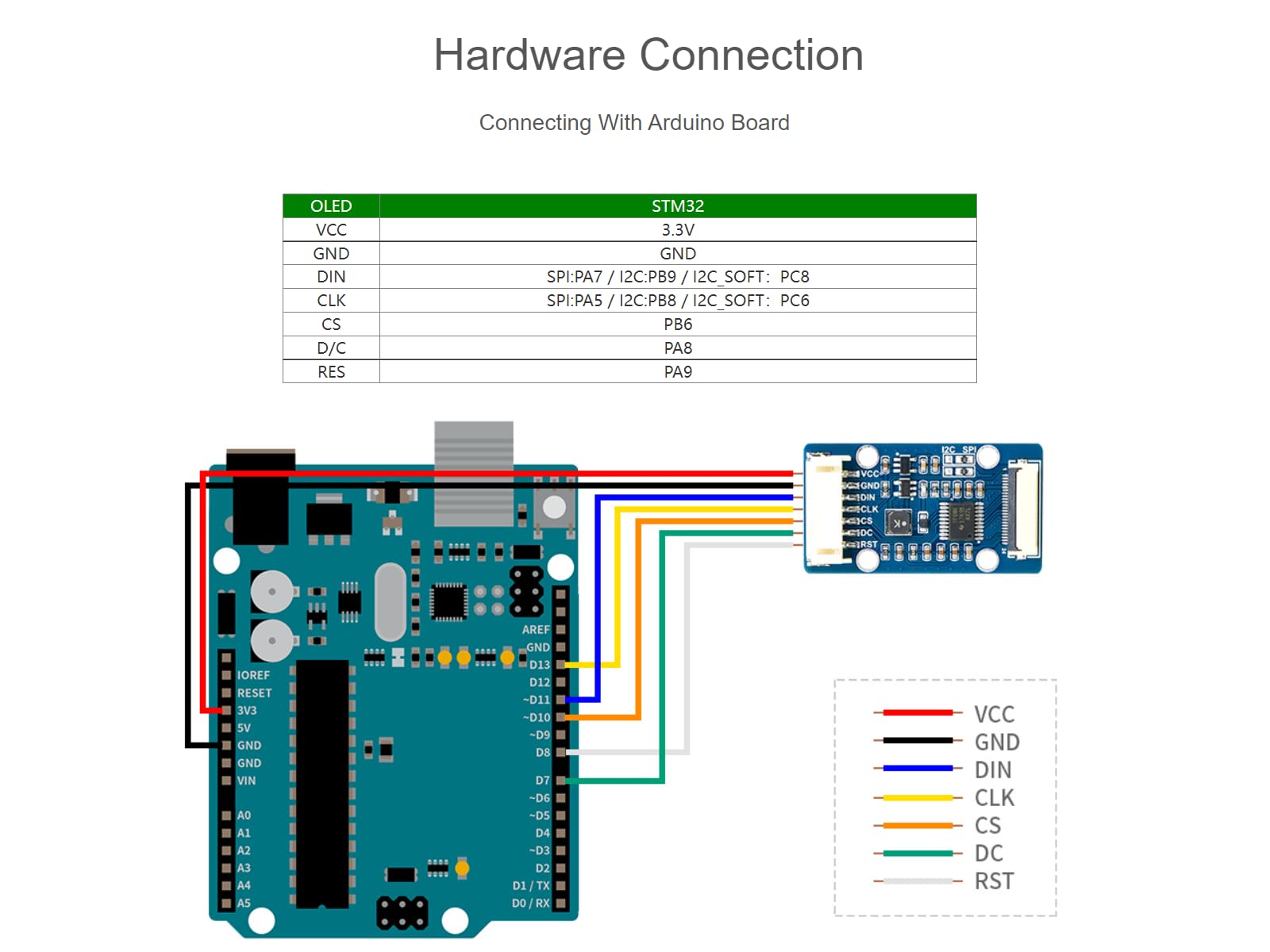

The Waveshare 1.51" Transparent OLED Screen features a 128x64 pixel light blue display with an embedded SSD1309 driver chip. Compatible with Raspberry Pi, Arduino, and STM32 via SPI/I2C interfaces, it supports both 3.3V and 5V systems. Its ultra-compact transparent design and dual communication modes make it a versatile, high-performance display solution for cutting-edge embedded projects.
| Brand | Waveshare |

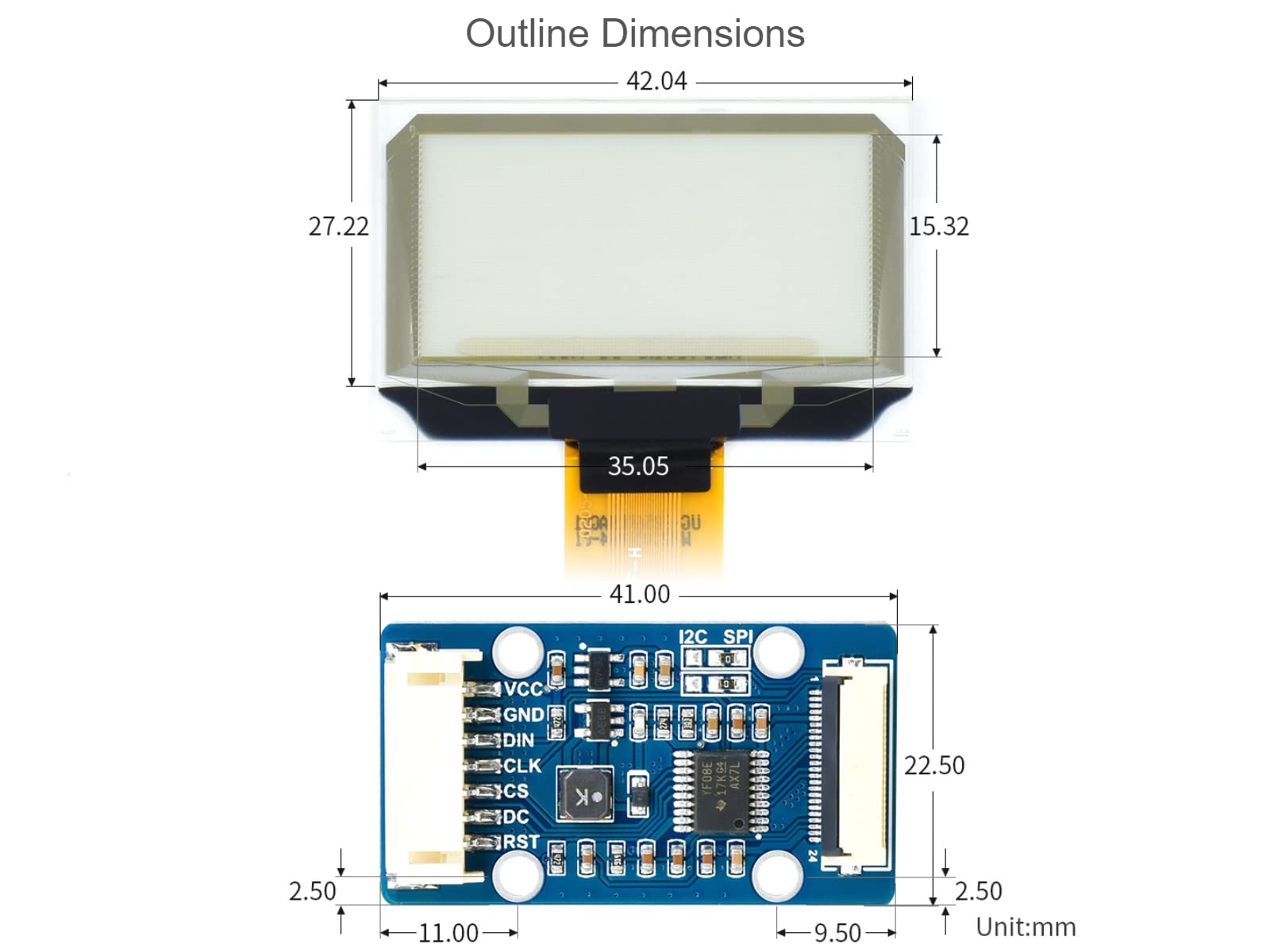

| Product Dimensions | 4.2 x 1.5 x 0.5 cm; 20 g |
| Item model number | 1.51 inch Transparent OLED Module |
| Manufacturer | Waveshare |
| Series | 1.51 inch Transparent OLED Module |
| Color | 1.51inch |
| Standing screen display size | 1.51 Inches |
| Screen Resolution | 128 x 64 |
| Resolution | 128 x 64 |
| Processor Brand | Raspberry Pi |
| Wireless Type | Infrared |
| Voltage | 3.3 Volts |
| Operating System | Raspberry Pi OS |
| Are Batteries Included | No |
| Item Weight | 20 g |
